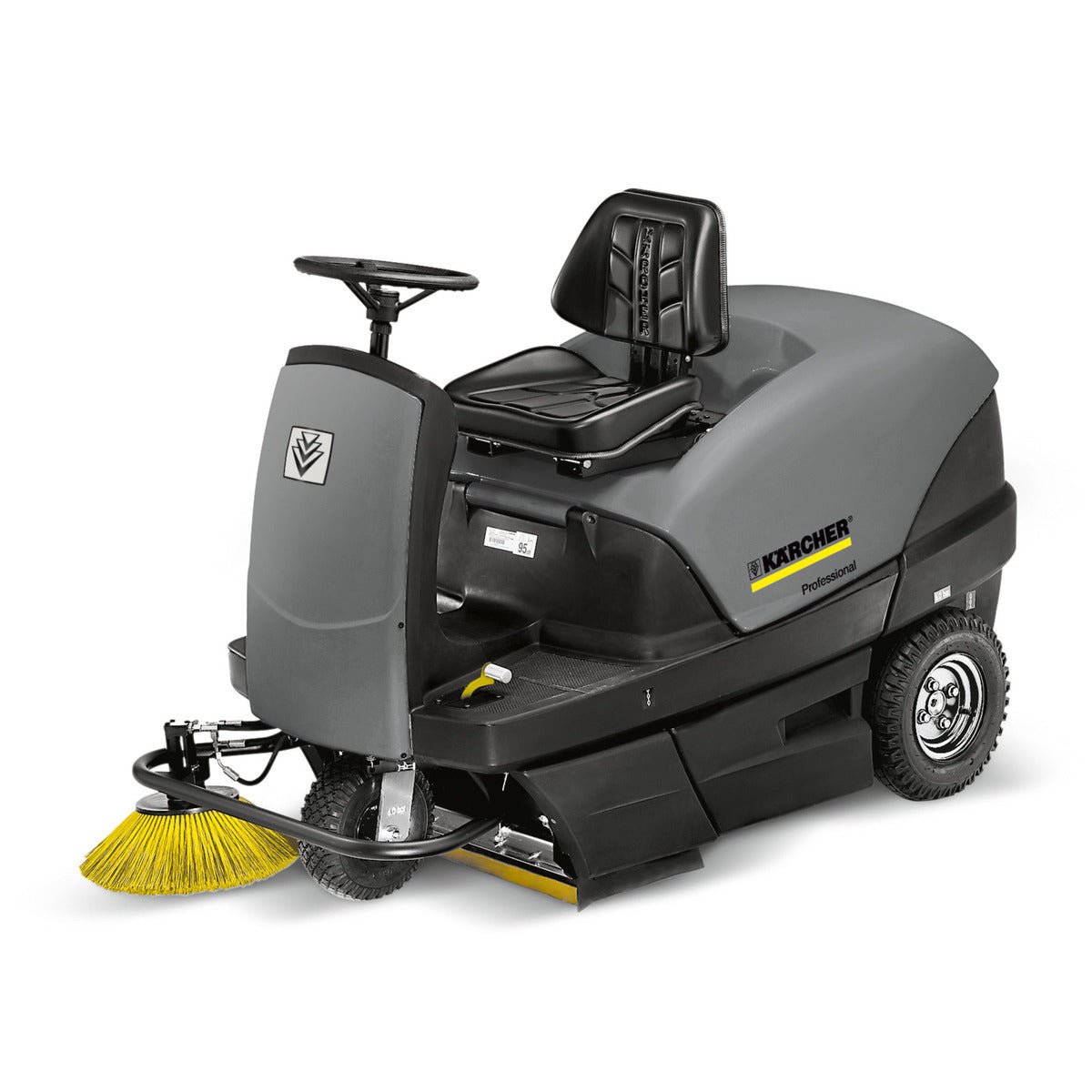

Karcher Vacuum Sweeper KM 100/100 R Bp

Description

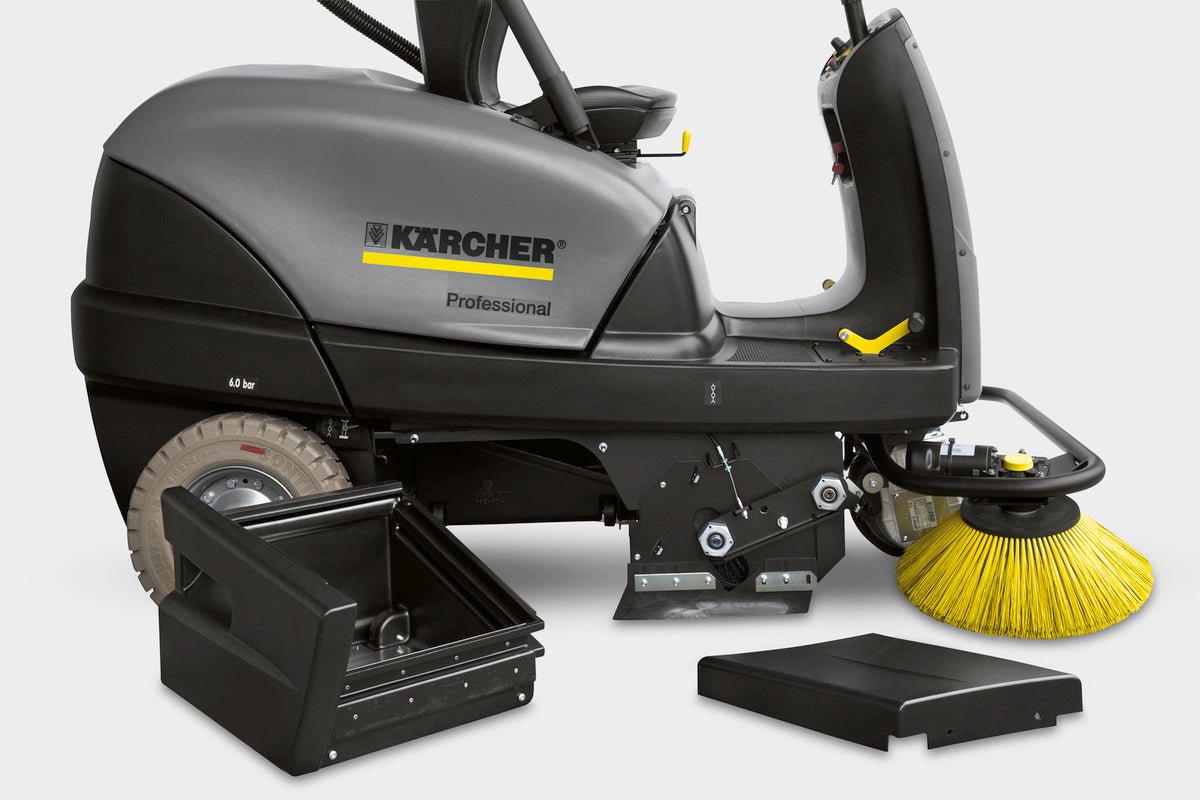

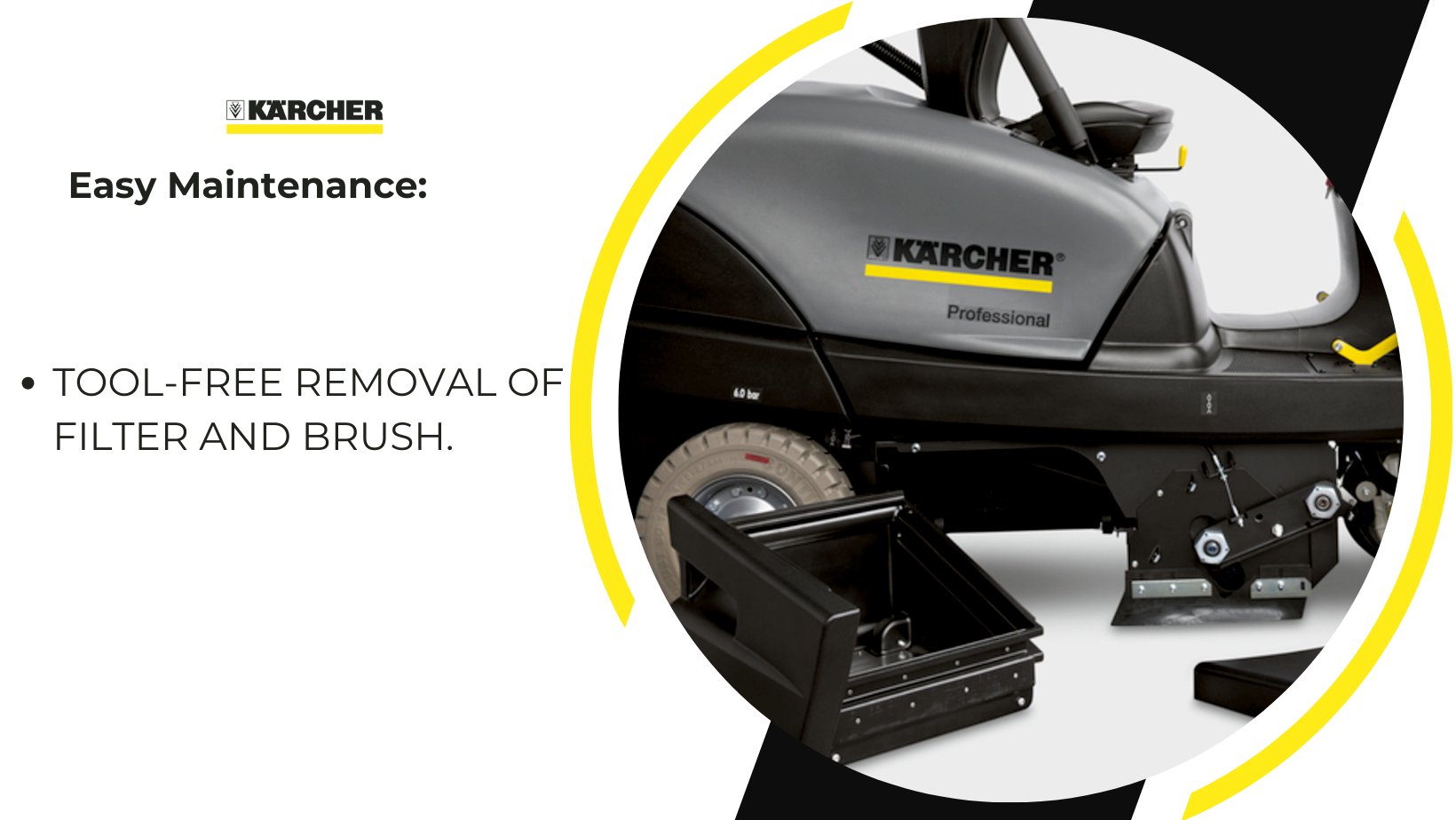

The Karcher sweeper is equipped with a 24 V/750 W DC motor, featuring straightforward pedal operation for forward and reverse, a compact turning radius of 3350 mm, and an automatic parking brake using vacuum technology. It ensures safety with an automatic engine shutdown when the driver vacates the seat. The machine employs an efficient overthrow sweeping/vacuum system, with a self-adjusting floating roller brush for uneven surfaces and tool-free replacement for the filter and brush. It includes an integrated flap for large debris like cans and wet leaves, with hydraulically driven side and roller brushes. An additional side brush is optional. The dual 50-liter dirt containers are easily removable from the side for convenience. Operation is simplified with automatic lifting and lowering of the main and side brushes, all controlled by a single pedal for seamless direction changes.

Features

Technical Data:

• Traction Drive: DC motor
• Drive Performance: 24 V / 2.1 kW
• Drive Type: Electric
• Max Area Performance: 6000 m²/h (7800 m²/h with 2 side brushes)
• Working Widths: 700 mm (1000 mm with 1 side brush, 1300 mm with 2 side brushes)
• Battery: 240 Ah, 24 V, max 2.5 h runtime
• Waste Container: 100 liters
• Climbing Ability: 18%
• Working Speed: 6 km/h
• Filter Area: 6 m²
• Weight: 320 kg (with accessories), 300 kg (ready to use)
• Dimensions: 2006 x 1005 x 1343 mm

Scope of Supply:

• Includes: Polyester round filter, non-marking wheels

Equipment:

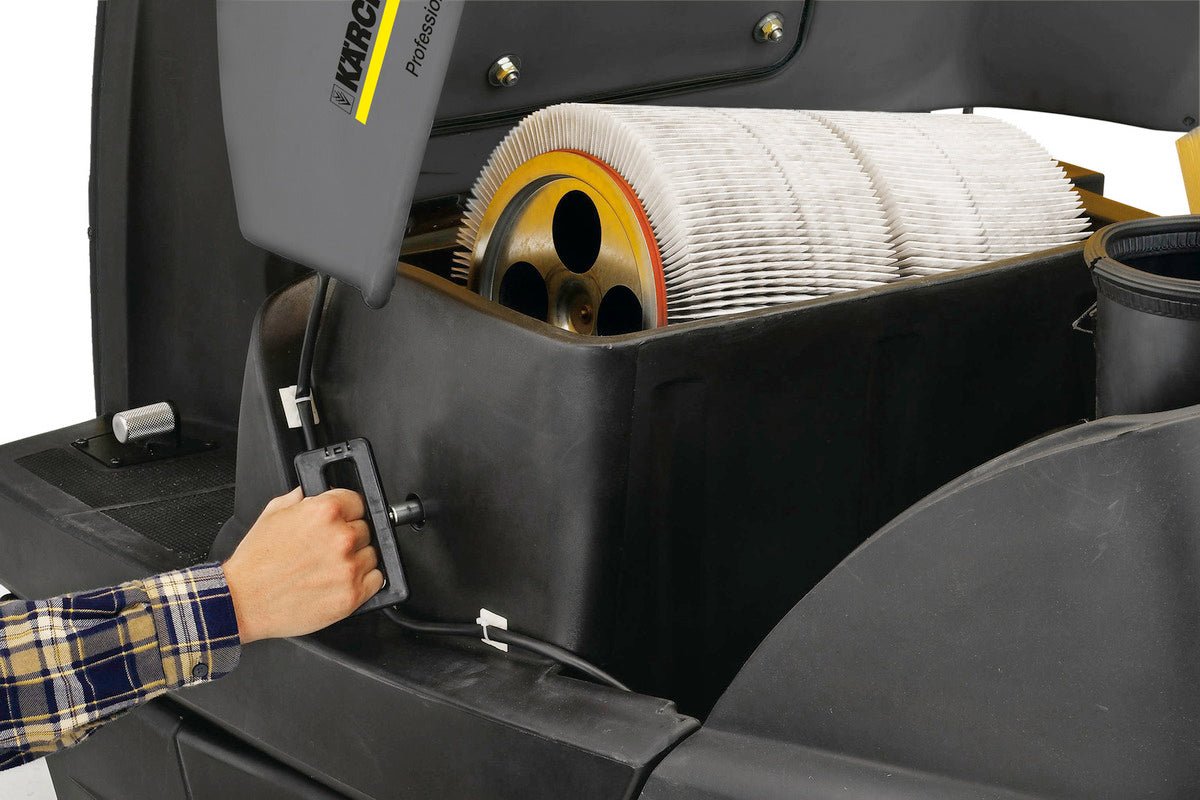

• Manual and automatic filter cleaning
• Floating main sweeper roller
• Suction volume regulation
• Coarse dirt flap
• Overhead sweeping principle
• Forward traction drive
• Backward traction drive
• Suction feature
• Suitable for outdoor use
• Suitable for indoor use
• Battery level indicator
• Elapsed time counter
• Sweeping function (can be deactivated)
